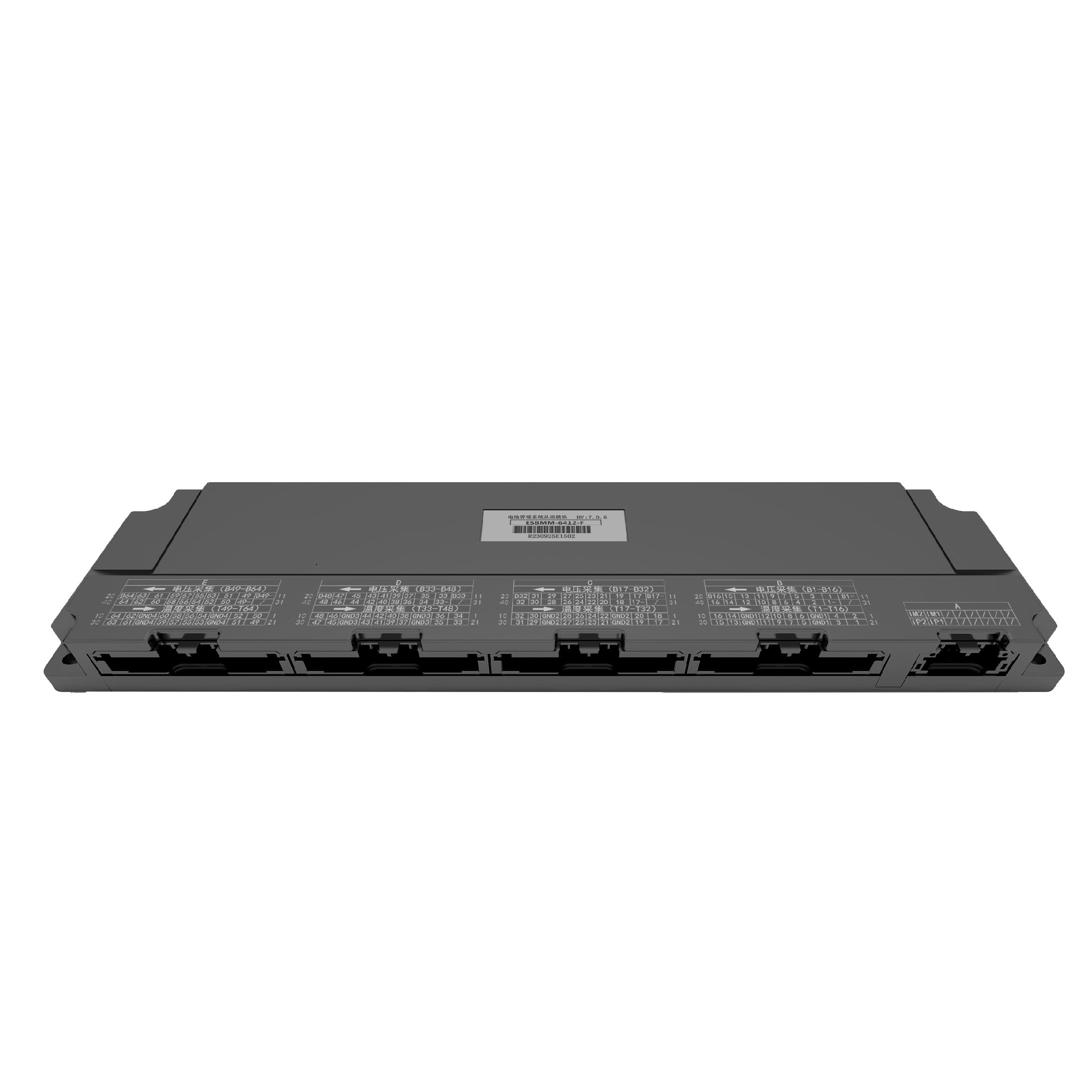

Engineered specifically for advanced 1500Vdc Energy Storage Systems, the ESBMM-6412 is a highly integrated passive balancing BMS slave module designed to meet rigorous safety and electrical compliance.It delivers expansive monitoring capacity with 64 cell-level voltage channels and 64 individual NTC (10K) temperature sensors for precise 1-to-1 thermal tracking. Engineered with a reliable 100mA passive balancing control, it allows simultaneous controlled discharging of multiple cells while uniquely measuring the dissipated energy of each individual cell. Uniquely equipped with an ultra-low power DAQ mode that reduces potential current to 50uA or lower, along with comprehensive multi-level fault alarms and strict adherence to global functional safety standards (including GB/T34131 and IEC62477), this module ensures superior system safety and extended battery cycle life in demanding commercial and utility-scale environments.
Optimized for high-voltage grids requiring strict insulation and global safety compliance.
Suited for advanced thermal architectures needing precise 64-cell temperature tracking.
Ideal for battery racks requiring ultra-low standby power and multi-cell passive balancing.
Tailored for dense containers relying on continuous voltage monitoring and fault protection.
| Type | Model | Supply Voltage | Voltage Series | Voltage Range | Temp Sensors | Temp Range | Balancing Current | Communication |
|---|---|---|---|---|---|---|---|---|
| Level 1 Slave Passive Balancing |
ESBMM-1212-F HV6.0.0 | DC24V | 12 | 0-5V | 14 | -40~125°C | 100mA | CAN |
| ESBMM-2412-F HV7.0.1 | 24 | 24 | ||||||
| ESBMM-3612-F HV7.0.1 | 36 | 36 | ||||||
| ESBMM-4812-F HV7.0.1 | 48 | 48 | ||||||
| ESBMM-6012-F HV7.0.1 | 60 | 60 | ||||||
| ESBMM-1612-F HV7.0.7 | / | 16 | 16 | Daisy Chain | ||||
| ESBMM-3212-F HV7.0.7 | 32 | 32 | ||||||
| ESBMM-4812-F HV7.0.7 | 48 | 48 | ||||||
| ESBMM-6412-F HV7.0.7 | 64 | 64 | ||||||
| ESBMM-6412-F HV7.1.0 | DC24V | 64 | 64 | CAN | ||||
| ESBMM-B212-F HV7.1.0 | 112 | 112 | ||||||
| Level 1 Slave Active Balancing |
ESBMM-1222-F HV4.0.6 | DC24V | 12 | 0-5V | 14 | -40~125°C | 2A | CAN |
| ESBMM-1622-F HV4.0.6 | 16 | 16 | ||||||
| ESBMM-2422-F HV4.0.6 | 24 | 24 | ||||||
| ESBMM-2622-F HV4.0.0 | 26 | 26 | ||||||
| ESBMM-5222-F HV4.0.0 | 52 | 56 | ||||||
| ESBMM-A422-F HV5.0.0 | 104 | 104 |
The ESBMM-6412 implements a 100mA passive balance achieved through controlled, simultaneous discharging of multiple cells within the rack. Crucially, the balanced energy of each individual cell can be precisely measured for better system analytics.
It delivers exceptional high-density tracking by supporting simultaneous cell-level voltage monitoring for 64 cells, paired directly with 64 dedicated NTC (10K) temperature monitoring points to ensure precise, 1-to-1 battery health oversight.
The module features an advanced low-power DAQ mode designed to drastically reduce parasitic energy drain on the battery rack. When in this low-power mode, the potential current is minimized to 50uA or lower, preserving overall system efficiency.
Yes, it is purpose-built to meet the strict requirements of 1500Vdc Energy Storage Systems. It features comprehensive multi-level alarms (for overvoltage, overtemperature, and communication failures) and complies with global functional safety and electrical insulation standards including GB/T34131, EN/IEC/UL62368, and IEC62477.
