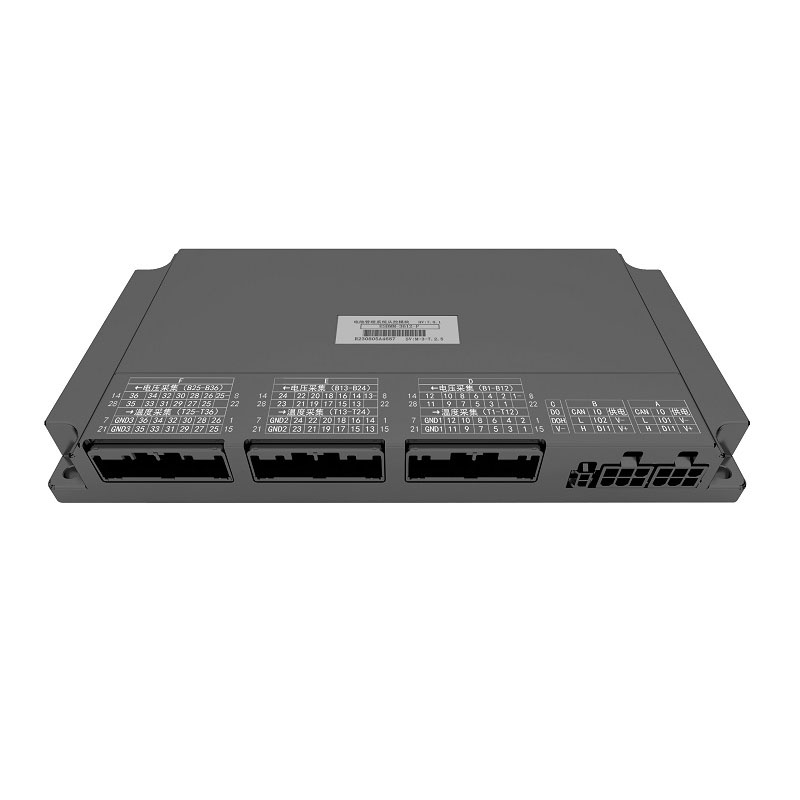

The ESBMM-3612 is a highly integrated passive balancing BMS slave module optimized for advanced energy storage systems that require comprehensive thermal and cooling management. It delivers expansive monitoring capacity with 36 cell-level voltage channels and 36 individual NTC (10K) temperature sensors for precise 1-to-1 thermal tracking. Engineered with a reliable 100mA passive balancing control, it allows simultaneous controlled discharging of multiple cells while uniquely measuring the dissipated energy of each individual cell. Uniquely equipped with dedicated fan speed control and state feedback mechanisms, this module ensures superior system safety and extended battery cycle life in thermally demanding environments.
Perfectly tailored for systems requiring direct fan speed control and feedback.
Provides reliable 36-cell passive balancing for critical backup power arrays.
High-density 1-to-1 thermal tracking prevents localized overheating.
Accurately measures dissipated energy to maintain rack stability in C&I deployments.
| Type | Model | Supply Voltage | Voltage Series | Voltage Range | Temp Sensors | Temp Range | Balancing Current | Communication |
|---|---|---|---|---|---|---|---|---|
| Level 1 Slave Passive Balancing |
ESBMM-1212-F HV6.0.0 | DC24V | 12 | 0-5V | 14 | -40~125°C | 100mA | CAN |
| ESBMM-2412-F HV7.0.1 | 24 | 24 | ||||||
| ESBMM-3612-F HV7.0.1 | 36 | 36 | ||||||
| ESBMM-4812-F HV7.0.1 | 48 | 48 | ||||||
| ESBMM-6012-F HV7.0.1 | 60 | 60 | ||||||
| ESBMM-1612-F HV7.0.7 | / | 16 | 16 | Daisy Chain | ||||
| ESBMM-3212-F HV7.0.7 | 32 | 32 | ||||||
| ESBMM-4812-F HV7.0.7 | 48 | 48 | ||||||
| ESBMM-6412-F HV7.0.7 | 64 | 64 | ||||||
| ESBMM-6412-F HV7.1.0 | DC24V | 64 | 64 | CAN | ||||
| ESBMM-B212-F HV7.1.0 | 112 | 112 | ||||||
| Level 1 Slave Active Balancing |
ESBMM-1222-F HV4.0.6 | DC24V | 12 | 0-5V | 14 | -40~125°C | 2A | CAN |
| ESBMM-1622-F HV4.0.6 | 16 | 16 | ||||||
| ESBMM-2422-F HV4.0.6 | 24 | 24 | ||||||
| ESBMM-2622-F HV4.0.0 | 26 | 26 | ||||||
| ESBMM-5222-F HV4.0.0 | 52 | 56 | ||||||
| ESBMM-A422-F HV5.0.0 | 104 | 104 |
The ESBMM-3612 implements a 100mA passive balance achieved through controlled discharging of multiple cells within the rack simultaneously. Crucially, the dissipated energy of each individual cell can be precisely measured for better system analytics.
Yes. It is equipped to support fan speed control, fan state feedback, and speed detection, making it highly suitable for air-cooled energy storage cabinets where thermal regulation is actively managed by the BMS.
This high-capacity slave module supports cell-level voltage monitoring for 36 cells and pairs this directly with 36 NTC (10K) temperature monitoring points, guaranteeing a strict 1-to-1 thermal mapping.
Alongside its internal monitoring, the board is designed to support 1 digital signal output and 1 digital signal input detection, allowing seamless integration with external alarms or system triggers.
