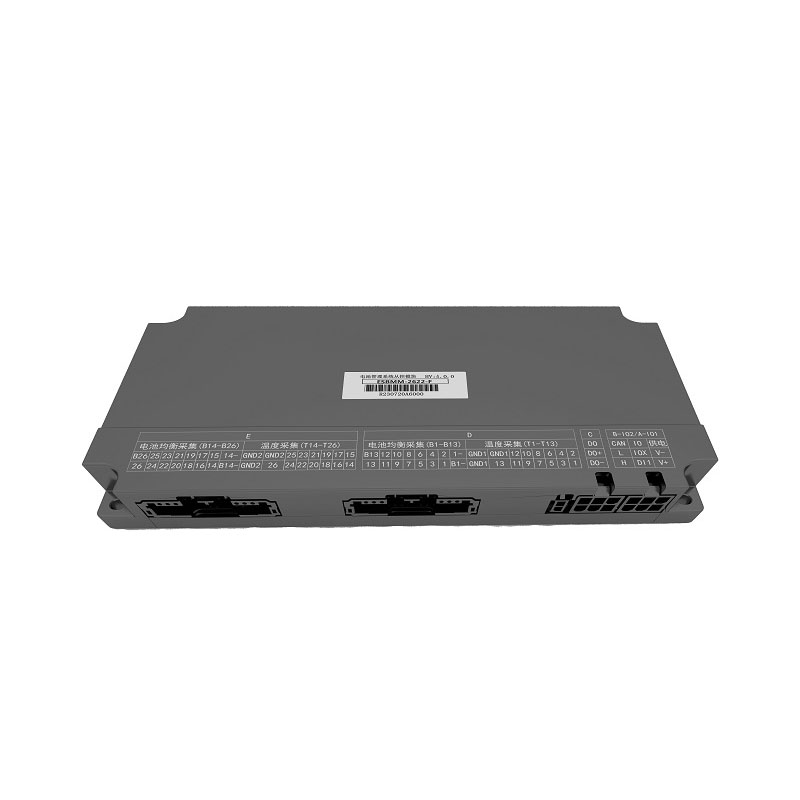

The ESBMM-2622 is a high-density active balancing BMS slave module designed to deliver unparalleled precision in 1500Vdc energy storage systems. Setting a new industry benchmark, it provides 1-to-1 cell monitoring with 26 cell-level voltage channels and 26 independent NTC (10K) temperature monitoring points. Powered by a proprietary Gold chip-level bi-directional active balance technology, it delivers a robust 2A balancing current, allowing for simultaneous charging or discharging of any single cell. Enhanced with advanced active cold and heat management based on real-time battery temperatures, this module maximizes rack consistency, prevents thermal runaway, and dramatically extends the cycle life of high-capacity battery packs.
Ideal for maximizing capacity in tightly packed 1500Vdc utility containers.
Active cold/heat management ensures stability in harsh climates.
Delivers Gold chip-level 2A balancing for intense industrial cycling.
Provides 1-to-1 precise voltage and thermal data for smart grid integration.
| Type | Model | Supply Voltage | Voltage Series | Voltage Range | Temp Sensors | Temp Range | Balancing Current | Communication |
|---|---|---|---|---|---|---|---|---|
| Level 1 Slave Passive Balancing |
ESBMM-1212-F HV6.0.0 | DC24V | 12 | 0-5V | 14 | -40~125°C | 100mA | CAN |
| ESBMM-2412-F HV7.0.1 | 24 | 24 | ||||||
| ESBMM-3612-F HV7.0.1 | 36 | 36 | ||||||
| ESBMM-4812-F HV7.0.1 | 48 | 48 | ||||||
| ESBMM-6012-F HV7.0.1 | 60 | 60 | ||||||
| ESBMM-1612-F HV7.0.7 | / | 16 | 16 | Daisy Chain | ||||
| ESBMM-3212-F HV7.0.7 | 32 | 32 | ||||||
| ESBMM-4812-F HV7.0.7 | 48 | 48 | ||||||
| ESBMM-6412-F HV7.0.7 | 64 | 64 | ||||||
| ESBMM-6412-F HV7.1.0 | DC24V | 64 | 64 | CAN | ||||
| ESBMM-B212-F HV7.1.0 | 112 | 112 | ||||||
| Level 1 Slave Active Balancing |
ESBMM-1222-F HV4.0.6 | DC24V | 12 | 0-5V | 14 | -40~125°C | 2A | CAN |
| ESBMM-1622-F HV4.0.6 | 16 | 16 | ||||||
| ESBMM-2422-F HV4.0.6 | 24 | 24 | ||||||
| ESBMM-2622-F HV4.0.0 | 26 | 26 | ||||||
| ESBMM-5222-F HV4.0.0 | 52 | 56 | ||||||
| ESBMM-A422-F HV5.0.0 | 104 | 104 |
This provides a precise 1-to-1 thermal mapping ratio. Because the module monitors 26 cells, equipping it with 26 individual NTC (10K) sensors ensures that every single cell's temperature is tracked independently, leaving zero blind spots for thermal runaway.
This proprietary chip-level technology enables 26 channels of active balance with a powerful 2A current. It supports the simultaneous charging or discharging of any single cell in the rack, drastically improving battery consistency faster than traditional logic circuits.
It utilizes active cold and heat management based on real-time battery temperatures. The BMS can automatically trigger targeted temperature control for cooling or temperature rise, ensuring the battery pack remains within optimal safety thresholds.
Yes. By combining 1-to-1 thermal management with powerful 2A any-cell-to-any-cell active balancing, the ESBMM-2622 eliminates micro-imbalances and heat stress, directly extending the overall cycle life of the energy storage system.
