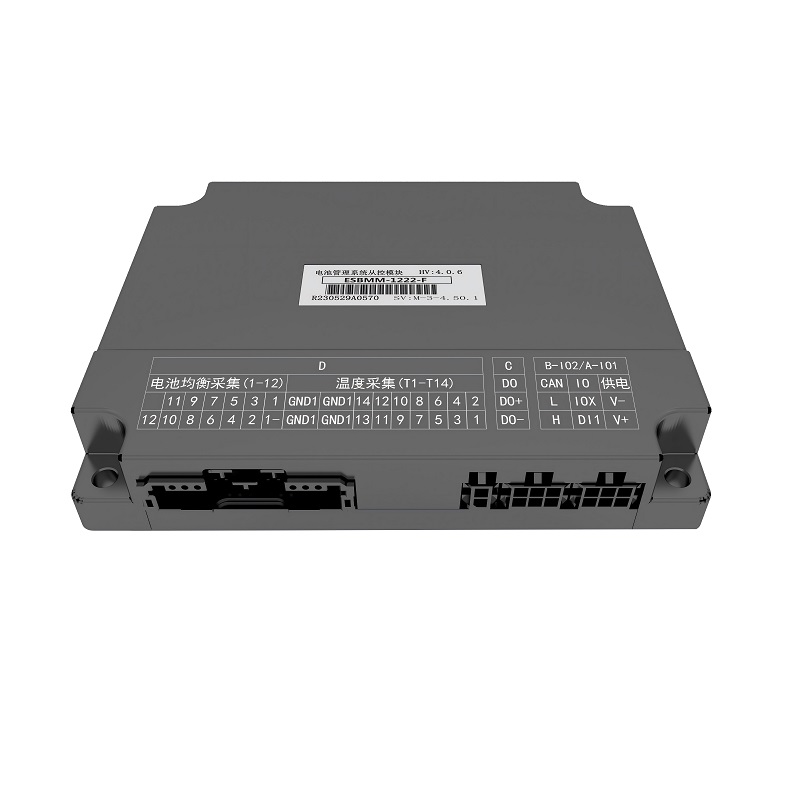

The ESBMM-1222 is an advanced active balancing BMS slave module engineered for 1500Vdc high-voltage energy storage systems. It delivers high-precision voltage monitoring for 12 cells, integrating a powerful 2A bi-directional any-cell-to-any-cell active equalizer to maximize battery capacity. Featuring comprehensive active thermal management with 14 NTC (10K) sensors, robust safety detection mechanisms, and an ultra-low power DAQ mode (≤10uA), this intelligent module significantly enhances system efficiency, prolongs battery lifespan, and meets global electrical insulation certifications.
Perfect for high-voltage large-scale utility energy storage plants.
Empowers smart commercial and industrial full-stack energy solutions.
Provides highly reliable battery data for Virtual Power Plant operations.
Delivers efficient 2A active balancing to maintain microgrid stability.
| Type | Model | Supply Voltage | Voltage Series | Voltage Range | Temp Sensors | Temp Range | Balancing Current | Communication |
|---|---|---|---|---|---|---|---|---|
| Level 1 Slave Passive Balancing |
ESBMM-1212-F HV6.0.0 | DC24V | 12 | 0-5V | 14 | -40~125°C | 100mA | CAN |
| ESBMM-2412-F HV7.0.1 | 24 | 24 | ||||||
| ESBMM-3612-F HV7.0.1 | 36 | 36 | ||||||
| ESBMM-4812-F HV7.0.1 | 48 | 48 | ||||||
| ESBMM-6012-F HV7.0.1 | 60 | 60 | ||||||
| ESBMM-1612-F HV7.0.7 | / | 16 | 16 | Daisy Chain | ||||
| ESBMM-3212-F HV7.0.7 | 32 | 32 | ||||||
| ESBMM-4812-F HV7.0.7 | 48 | 48 | ||||||
| ESBMM-6412-F HV7.0.7 | 64 | 64 | ||||||
| ESBMM-6412-F HV7.1.0 | DC24V | 64 | 64 | CAN | ||||
| ESBMM-B212-F HV7.1.0 | 112 | 112 | ||||||
| Level 1 Slave Active Balancing |
ESBMM-1222-F HV4.0.6 | DC24V | 12 | 0-5V | 14 | -40~125°C | 2A | CAN |
| ESBMM-1622-F HV4.0.6 | 16 | 16 | ||||||
| ESBMM-2422-F HV4.0.6 | 24 | 24 | ||||||
| ESBMM-2622-F HV4.0.0 | 26 | 26 | ||||||
| ESBMM-5222-F HV4.0.0 | 52 | 56 | ||||||
| ESBMM-A422-F HV5.0.0 | 104 | 104 |
The series is developed by GOLD ELECTRONIC EQUIPMENT Co.,Ltd[cite: 1]. Established in 1998, they are a national high-tech enterprise dedicated to the new energy industry, providing advanced energy storage Battery Management Systems (BMS) and full-stack solutions[cite: 1].
This model is equipped with bi-directional active balancing control, offering a high balancing current of 2A. Furthermore, it supports efficient any-cell-to-any-cell energy transfer directly within the rack.
Yes, beyond hardware like the BMS front-end acquisition and active balancing chips, GOLD ELECTRONIC offers the ETANK commercial and industrial (C&I) energy storage full-stack solution[cite: 1]. They also provide data management services, smart operation, and VPP (Virtual Power Plant) platforms[cite: 1].
To ensure absolute system safety, the module supports a comprehensive suite of detections including cell over-voltage, under-voltage, over-current, under-current, and over-temperature monitoring.
