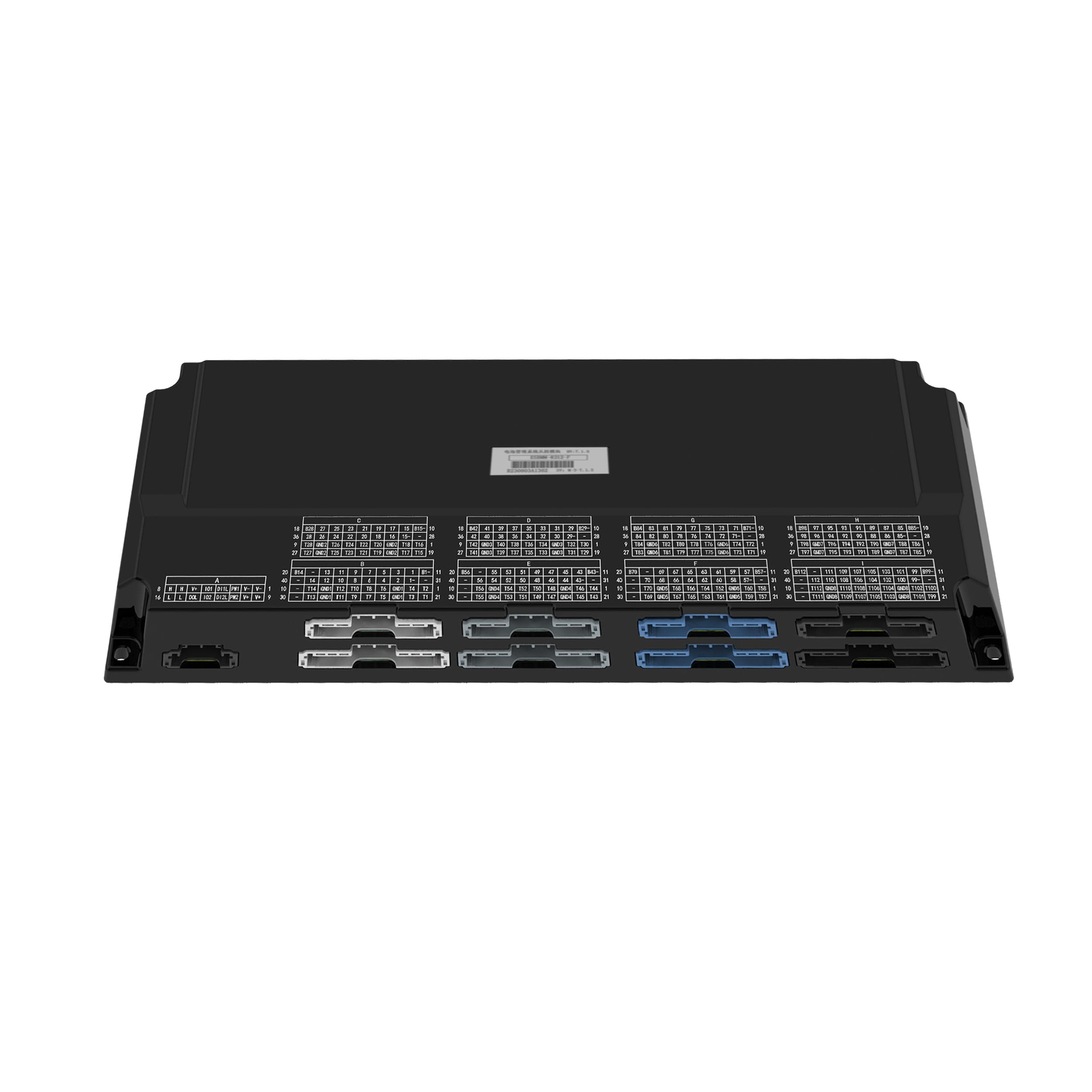

Maximizing battery consistency and extending cycle life, this advanced active balancing BMS module is built to handle the rigorous demands of modern energy storage racks. It boasts an immense monitoring capacity, tracking up to 104 cell voltages and 112 NTC (10K) temperature points simultaneously. At its core is a premium Gold chip-level bi-directional active balancer that delivers a 2A current across 104 channels, allowing dynamic any-cell-to-any-cell energy transfer. This precise simultaneous charging and discharging capability ensures optimal pack health, while full compliance with stringent international safety certifications (like IEC/EN/UL 62368 and UL1973) guarantees reliable and safe operation.
Optimized for grid-tied systems requiring 104-cell monitoring and strict safety compliance (UL1973, IEC 62619).
Suited for advanced thermal architectures demanding precise 112-point NTC temperature tracking.
Ideal for repurposed racks relying on 2A bi-directional active balancing to resolve cell inconsistencies.
Tailored for high-cycle systems utilizing single-cell charge/discharge to maximize overall cycle life.
| Type | Model | Supply Voltage | Voltage Series | Voltage Range | Temp Sensors | Temp Range | Balancing Current | Communication |
|---|---|---|---|---|---|---|---|---|
| Level 1 Slave Passive Balancing |
ESBMM-1212-F HV6.0.0 | DC24V | 12 | 0-5V | 14 | -40~125°C | 100mA | CAN |
| ESBMM-2412-F HV7.0.1 | 24 | 24 | ||||||
| ESBMM-3612-F HV7.0.1 | 36 | 36 | ||||||
| ESBMM-4812-F HV7.0.1 | 48 | 48 | ||||||
| ESBMM-6012-F HV7.0.1 | 60 | 60 | ||||||
| ESBMM-1612-F HV7.0.7 | / | 16 | 16 | Daisy Chain | ||||
| ESBMM-3212-F HV7.0.7 | 32 | 32 | ||||||
| ESBMM-4812-F HV7.0.7 | 48 | 48 | ||||||
| ESBMM-6412-F HV7.0.7 | 64 | 64 | ||||||
| ESBMM-6412-F HV7.1.0 | DC24V | 64 | 64 | CAN | ||||
| ESBMM-B212-F HV7.1.0 | 112 | 112 | ||||||
| Level 1 Slave Active Balancing |
ESBMM-1222-F HV4.0.6 | DC24V | 12 | 0-5V | 14 | -40~125°C | 2A | CAN |
| ESBMM-1622-F HV4.0.6 | 16 | 16 | ||||||
| ESBMM-2422-F HV4.0.6 | 24 | 24 | ||||||
| ESBMM-2622-F HV4.0.0 | 26 | 26 | ||||||
| ESBMM-5222-F HV4.0.0 | 52 | 56 | ||||||
| ESBMM-A422-F HV5.0.0 | 104 | 104 |
This module utilizes Gold chip-level bi-directional active balancing with a powerful 2A current. It enables dynamic any-cell-to-any-cell energy transfer, allowing simultaneous charging or discharging of individual cells, which effectively maximizes battery consistency and significantly prolongs the cycle life of the system.
It delivers exceptional high-density tracking by supporting simultaneous cell-level voltage monitoring for up to 104 cells. Furthermore, it offers an industry-leading 112 channels of NTC (10K) temperature monitoring, ensuring unparalleled thermal oversight for high-capacity and liquid-cooled architectures.
Yes, the board supports the targeted charging or discharging of any single cell within the battery rack at the same time. This precise, bi-directional control mechanism ensures optimal cell health and maximizes the usable energy capacity of the entire storage array without wasting excess power.
Absolutely. It is engineered to meet rigorous functional safety and electrical insulation resistance requirements. The module fully complies with a comprehensive suite of major international standards, including UL1973, IEC/EN 62619, IEC/EN/UL 62368, and GB/T 34131-2023, ensuring safe and reliable global integration.
